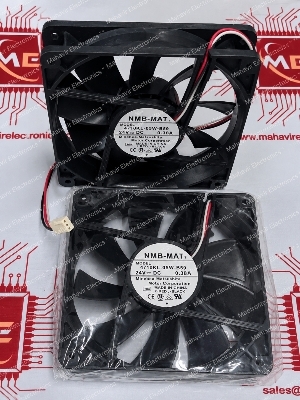

4710KL-05W-B59 cooling fan

About 4710KL-05W-B59 cooling fan

The 4710KL-05W-B59 is a high-reliability DC brushless axial cooling fan manufactured by NMB-MAT (Minebea Mitsumi). It is widely used in industrial electronics, control panels, power supplies, inverters, and server racks for efficient heat dissipation.

Key Technical Specifications:

• Type: DC Brushless Axial Flow Cooling Fan

• Dimensions: $120 \times 120 \times 25\text{ mm}$ (approx. 4.7 inches square, 1 inch thickness)

• Rated Voltage: 24V DC

• Operating Current: 0.38A

• Power Consumption: ~9.12W

• Speed: ~2,800 RPM

• Air Flow / Volume: ~114.7 to 115 CFM

• Termination / Leads: 3-Wire configuration (typically includes power, ground, and a tachometer/rotational speed sensor output)

• Material: Durable high-quality molded plastic housing and impeller.
