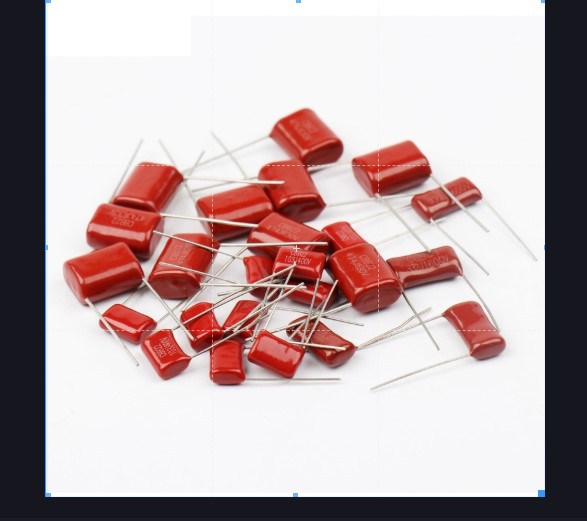

CAPACITOR 104/630VDC CBB22

CAPACITOR 104/630VDC CBB22 Specification

Current
N/A (Voltage-rated component)

Insulation Resistance
>= 30,000 M (at 100V, 1 min)

Surface Mount Land Size
N/A (Through Hole)

Lead Spacing
10mm (typical for 0.1uF 630V CBB22)

Frequency
High Frequency Applications

Breakdown Voltage
150% of rated voltage for 2 seconds

Loss Tangent
0.001 (at 1kHz)

Insulation Voltage
630VDC

Product Type
Film Capacitor

Material
Metallized Polypropylene Film

Capacitance
0.1uF (104)

Shell
Plastic

Operating Temperature
-40C to +85C

Rated Voltage
630VDC

Ripple
Low

Capacitance Tolerance
5% (J)

Temperature Range
-40C to +85C

Shape
Box/Rectangular

Terminal
Radial Leads

Size
Varies depending on manufacturer (typically 11x7x15 mm for 630V 104)

Color
Red

Storage Temperature
-40C to +105C

Typical Usage
Filtering, Coupling, Bypass, Audio Applications, Switching Power Supplies

Mounting Type
Through Hole

Flame Retardant Standard
UL94V-0

Dielectric Type
Polypropylene Film

Standard
Complies with IEC 60384-13

Dissipation Factor
0.001

Package
Bulk/Bagged

CAPACITOR 104/630VDC CBB22 Trade Information

Minimum Order Quantity
100 Pieces

Delivery Time
1 Week

CAPACITOR 104/630VDC CBB22 About

CAPACITOR 104/630VDC CBB22
The CBB22 104/630VDC Metallized Polypropylene Film Capacitor is a highly reliable, non-inductive electronic component designed for excellent high-frequency performance. Constructed with a premium metallized polypropylene film dielectric and encapsulated in a flame-retardant epoxy resin, this capacitor provides exceptional temperature stability, low power loss, and a long operational lifespan, making it ideal for demanding industrial and consumer electronics.

Superior Reliability and Safety

This capacitor utilizes metallized polypropylene film, offering remarkable stability and low loss across high frequencies. The plastic shell meets stringent UL94V-0 flame retardant requirements, ensuring enhanced safety in critical electronic applications. Its compliance with IEC 60384-13 guarantees consistent quality and international standards adherence.

Versatile Applications

Designed for use in filtering, coupling, bypass, and audio circuits, the CBB22 0.1F capacitor suits switching power supplies, audio electronics, and general-purpose installations. Its stable capacitance and low dissipation factor provide excellent performance in both signal and power applications.

Robust Construction for Demanding Environments

Featuring an operating temperature range from -40C to +85C and insulation resistance 30,000 M, this capacitor maintains reliability in tough conditions. The through-hole mounting with 10mm lead spacing ensures secure placement on standard PCBs, making it ideal for bulk production and repair environments.

FAQ's of CAPACITOR 104/630VDC CBB22:

Q: How is the CAPACITOR 104/630VDC CBB22 typically installed?

A: This capacitor is designed for through-hole mounting, featuring radial leads with a 10mm lead spacing. It can be easily inserted into standard PCBs and soldered in place, making it suitable for both automated and manual assembly.

Q: What are the primary applications for this capacitor?

A: The CBB22 0.1F 630VDC capacitor is commonly used for filtering, coupling, and bypass functions in power supplies, audio circuits, and general electronics. Its low loss tangent also makes it suitable for high-frequency applications.

Q: When should I choose a polypropylene film capacitor like the CBB22 over other types?

A: Select a polypropylene film capacitor when your application demands high voltage capability, low dissipation factor, excellent insulation resistance, and stable electrical characteristics over a wide temperature range. It's ideal for audio circuits, precision filtering, and power electronics.

Q: Where can this capacitor be used, considering its temperature range and design?

A: With an operating temperature range from -40C to +85C and robust insulation, the CBB22 can be used in both consumer and industrial electronics, especially where reliable performance in varied environmental conditions is required.

Q: What process is involved in the quality assurance of this product?

A: This capacitor is manufactured to comply with the IEC 60384-13 standard, ensuring consistency, high performance, and electrical safety. Each device is tested for breakdown voltage, insulation resistance, and dimensional accuracy before packaging.

Q: How does using a CBB22 0.1F 630VDC capacitor benefit my circuit?

A: With its low loss tangent, high insulation resistance, and stable capacitance, this capacitor enhances the efficiency, signal clarity, and reliability of your circuit. Its flame retardant shell also adds a safety layer to your design.
