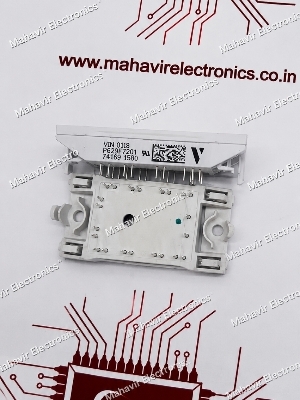

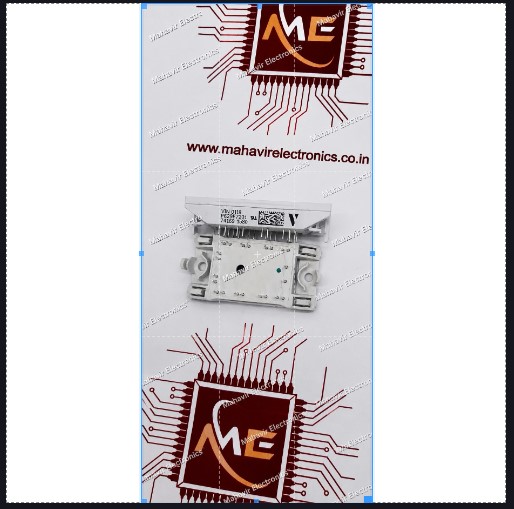

IGBT Module P629F7201

IGBT Module P629F7201 Specification

Output
Switched high voltage/current output

Components
IGBT chips, diode, insulating baseplate, terminals

Response Time
Fast switching (nanoseconds to microseconds range)

Interface
Screw terminal

Power Source
External DC power supply

IP Rating
IP20 (standard module)

Operating Temperature
-40C to +150C

Thermal Conductivity
Baseplate designed for efficient heat dissipation

Power Supply
DC

Features
Compact package, high efficiency, low saturation voltage, robust construction

Input
Gate drive signal

Usage
Power electronics, inverter circuits, motor drives, UPS systems

Product Type
IGBT Module

Application
Industrial automation, motor controllers, power conversion

Rated Voltage
1200V

Supply Voltage
1200V (Collector-Emitter)

Size
Industry standard housing

Dimension (L*W*H)
Approx. 10cm x 7cm x 3cm

Function
Insulated Gate Bipolar Transistor module for high-speed switching and efficient energy control

Color
White/Gray

Weight
Approx. 175g

Capacity
High current handling, typically 75A to 150A depending on configuration

Thickness
Standard package thickness

Current Rating
75A (Collector Current)

Frequency
High speed switching; up to 20kHz typical

Case Material
Molded plastic compound with metallic baseplate

Surge Current Rating
Up to 200A (pulse)

Lifecycle Status
Active, widely supported in industrial markets

Gate Threshold Voltage
Approx. 6V

Isolation Voltage
2500V AC (collector to baseplate)

Model Number
P629F7201

Mounting Type
Panel/Chassis mount

Compliance
RoHS compliant, CE certified

IGBT Module P629F7201 Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
10 Pieces Per Day

Delivery Time
2 Days

IGBT Module P629F7201 About

The P629F7201 (often manufactured by Tyco Electronics / Vincotech, under part numbers like V23990-P629) is a highly efficient, industrial-grade IGBT Power Module. Designed for ultra-fast switching frequencies and featuring a low-inductance layout, this robust module is engineered to handle demanding power environments with excellent thermal resistance.

Operating with a high voltage rating of up to 1200V and a continuous current rating of 40A, it guarantees reliable power conversion and management. It is the perfect component for heavy-duty industrial applications, including solar inverters, high-power UPS systems, EV charging stations, and professional welding and cutting equipment.

Robust Design for Demanding Applications

Built with a molded plastic compound and a metallic baseplate, the P629F7201 provides superior durability and thermal conductivity. The standard IP20 rating and compact dimensions allow for integration in tight industrial spaces while ensuring protection and longevity.

Efficient and Fast High-Voltage Switching

With its 1200V collector-emitter supply voltage, up to 75A collector current, and a switching frequency of up to 20kHz, this IGBT module is tailored for rapid and efficient energy control in motor controllers and power conversion systems.

Flexible Mounting and Secure Connections

Featuring a panel or chassis-mount design, along with screw terminal interface, installation and maintenance are straightforward. Its industry standard housing, lightweight construction, and user-friendly terminals make it adaptable for various industrial setups.

FAQ's of IGBT Module P629F7201:

Q: How do I install the IGBT Module P629F7201 in my industrial equipment?

A: The P629F7201 features a panel or chassis-mount design and screw terminals for easy and secure installation. Ensure the baseplate makes good thermal contact with a heat sink and follow safety guidelines for high-voltage connections.

Q: What are the primary applications for the P629F7201 IGBT module?

A: This module is ideal for use in power electronics, inverter circuits, uninterruptible power supplies (UPS), motor drives, power conversion, and industrial automation systems where high-speed and reliable energy switching is critical.

Q: When should I consider using an IGBT module like the P629F7201?

A: Use the P629F7201 when your application requires fast switching speeds (up to 20kHz), efficient energy control, high surge current handling (up to 200A pulse), and robust performance in environments with supply voltages up to 1200V.

Q: Where can the P629F7201 be integrated within electrical systems?

A: It can be integrated in the power stages of motor controllers, inverter systems, and UPS units. Its industry standard housing and compact size facilitate compatibility with a wide range of industrial power control panels.

Q: What is the process for connecting the input and output terminals?

A: The input requires a gate drive signal, and high-voltage DC is supplied to the collector-emitter terminals. Wiring is achieved via screw terminals, ensuring strong and reliable connections. Always adhere to proper safety procedures during installation.

Q: How does this IGBT module benefit my power control system?

A: The module offers high switching speeds, low saturation voltage, and efficient heat dissipation, resulting in improved overall efficiency, energy savings, and dependable operation, even under demanding industrial conditions.
