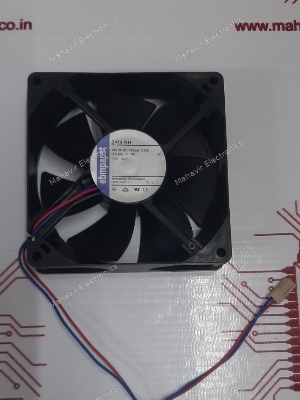

3414NH cooling fan

About 3414NH cooling fan

• Type: DC Axial Compact Fan

• Dimensions: 92 mm x 92 mm x 25 mm (approx. 3.6 inches square, 1 inch thick)

• Rated Voltage: 24 VDC (Operating voltage range typically 18 VDC to 28 VDC)

• Power Input: ~3.0 W

• Air Flow: 94 m/h (approx. 55.3 CFM)

• Speed: 3,000 RPM

• Sound Pressure Level: 36 dB(A)

• Bearing Type: High-reliability Ball Bearing

• Material: Glass-fiber reinforced PBT plastic housing with a glass-fiber reinforced PA plastic impeller

• Protection: Electronically protected against reverse polarity and locking

• Weight: 100 g
