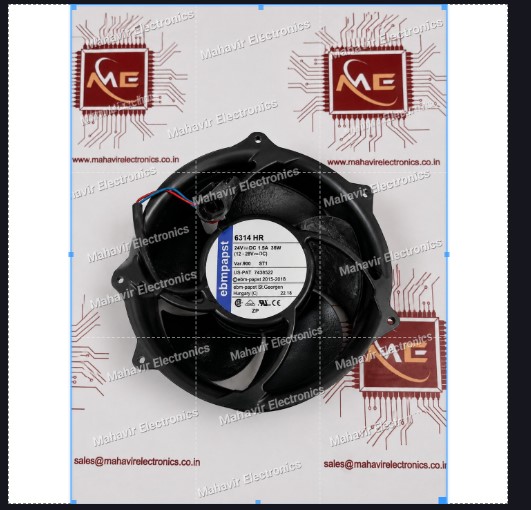

EBM-PAPST 6314 HR

EBM-PAPST 6314 HR Specification

Size
172 x 150 x 51 mm

Blade Material
Plastic

Type
Other

Installation Type
Panel/Chassis Mounting

Power
36 Watt (w)

Power Source
Electric

Voltage
24 Volt (v)

Speed Mode
Single

Blade Diameter
172 mm

No. Of Blades
7

Color
Black

Material
Plastic (Housing and Impeller)

Remote Operated
No

Protection Type
Impedance Protected

Ingress Protection
IP20

Frequency
50/60 Hz

Application
Industrial Electronics Cooling, Cabinet Ventilation

Operating Temperature Range
-40C to +70C

Enclosure Material
Plastic (Reinforced)

Speed
2800/3250 RPM

Rated Current
0.18/0.17A

Connection
2-Lead Wire

Model Number
6314 HR

Noise Level
47 dB(A)

Airflow
319 m3/h (at 50 Hz)

Bearing Type
Ball Bearing

EBM-PAPST 6314 HR About

The ebm-papst 6314 HR is an industrial-grade, high-performance 24V DC axial cooling fan. Built with a rugged die-cast aluminum frame and a brushless DC motor, it is designed to deliver heavy-duty airflow and static pressure under high thermal loads. It is widely used in variable frequency drives (VFDs), industrial automation, power electronics, network enclosures, and medical equipment requiring continuous, high-reliability operation.

Reliable Cooling Performance

The EBM-PAPST 6314 HR delivers consistent airflow of up to 319 m3/h, making it ideal for industrial environments where electronics and cabinets require effective heat management. The precision-engineered 7-blade design maximizes cooling efficiency while minimizing noise levels to just 47 dB(A).

Durability and Safety Features

With a robust reinforced plastic enclosure and IP20 ingress protection, the 6314 HR resists wear and protects internal components from dust and accidental contact. Impedance protection and ball bearing construction contribute to a long lifespan and reliable operation across extreme temperatures.

Simple Installation and Versatile Use

Engineered for easy panel or chassis mounting, this fan suits diverse applications in industrial settings. Its two-lead wire connection streamlines installation, requiring no remote operation or complex wiring. The single-speed configuration offers consistent performance with minimal setup.
