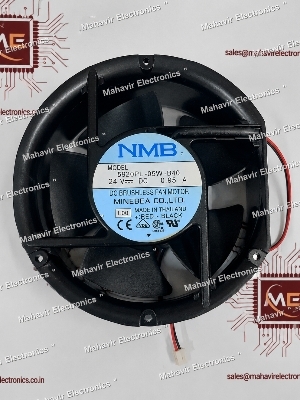

NMB 5920PL-05W-B40 cooling fan

NMB 5920PL-05W-B40 cooling fan Specification

Size
172x150x51 mm

Blade Material
Plastic

Type
Air Cooling Fan

Installation Type
Panel Mount

Power
15.8W 22.8W Watt (w)

Power Source
DC

Voltage
24 Volt (v)

Energy Efficiency Rating
Standard

Speed Mode
Single

Blade Diameter
172 mm (6.77 inches)

No. Of Blades
7

Color
Black

Material
Plastic & Metal

Remote Operated
No

Model
5920PL-05W-B40

Operating Temperature
-10C to +70C

Bearing Type
Ball Bearing

Frame Material
Aluminum

Noise Level
53 dBA

Life Expectancy
60,000 Hours

Connector Type
2-Wire

Rotational Speed
3200 RPM

Input Current
0.8A

Maximum Air Flow
190 CFM

NMB 5920PL-05W-B40 cooling fan Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
10 Pieces Per Day

Delivery Time
2 Days

NMB 5920PL-05W-B40 cooling fan About

The NMB 5920PL-05W-B40 is a heavy-duty, high-performance industrial DC axial cooling fan. Featuring an aluminum frame and durable dual ball bearing construction, it is designed for demanding thermal management applications such as industrial automation, server enclosures, power supplies, inverters, and heavy machinery.

High Performance and Durability

The NMB 5920PL-05W-B40 fan boasts high airflow with 190 CFM and a speed of 3,200 RPM, making it ideal for rapidly dissipating heat. Its ball bearing design ensures reduced friction, extending operational life up to 60,000 hours. The sturdy aluminum frame enhances resistance to environmental wear, providing durability for continuous use.

Wide Operating Temperature Range

Engineered to function in varying climates, this cooling fan operates smoothly in temperatures from -10C to +70C. Whether installed in cold storage electronics or industrial spaces running at high heat, its consistent performance ensures systems remain optimally ventilated under diverse conditions.

Simple Installation and Versatile Application

Featuring a panel mount design and standard 2-wire connector, the NMB 5920PL-05W-B40 is straightforward to install in panels, electronic enclosures, or machinery. Its compact size (172x150x51 mm) and single-speed mode make it suitable for numerous cooling requirements, supporting flexible deployment across sectors.

FAQ's of NMB 5920PL-05W-B40 cooling fan:

Q: How do I install the NMB 5920PL-05W-B40 cooling fan?

A: The NMB 5920PL-05W-B40 features a panel mount installation type and uses a 2-wire connector. Simply mount the frame onto your intended panel using corresponding screws, and connect the two wires to your compatible 24V DC power source.

Q: What environments are suitable for using this cooling fan?

A: This cooling fan operates efficiently in temperatures ranging from -10C to +70C, making it suitable for industrial equipment, electronic enclosures, control panels, and commercial machinery exposed to diverse environmental conditions.

Q: When should I consider replacing the fan?

A: With a life expectancy of 60,000 hours and a ball bearing mechanism, replacement is typically only needed after prolonged continuous use or if there are performance drops, unusual noise, or physical damage observed.

Q: Where can I use the NMB 5920PL-05W-B40?

A: The fan is ideal for use in industrial cooling, electronics enclosures, ventilation systems, and any application that requires reliable and high-airflow cooling. Its 7-blade, high-efficiency design makes it versatile for multiple settings.

Q: What benefits does the ball bearing type offer?

A: The ball bearing type used in this model provides decreased friction, greater reliability, and longer operational life compared to sleeve-bearing fans, ensuring stable performance even in continuous or high-vibration environments.

Q: How energy efficient is the fan?

A: It features a standard energy efficiency rating, operating at 15.8W to 22.8W of power. This ensures strong cooling performance while maintaining reasonable energy consumption for most applications.

Q: What is the noise level and is it suitable for quieter environments?

A: The NMB 5920PL-05W-B40 has a noise level of 53 dBA. While it offers powerful airflow, it may be audible in very quiet environments but is well-suited for industrial and commercial use where noise is less of a concern.
